Michelson Interferometer


Michelson Interferometer

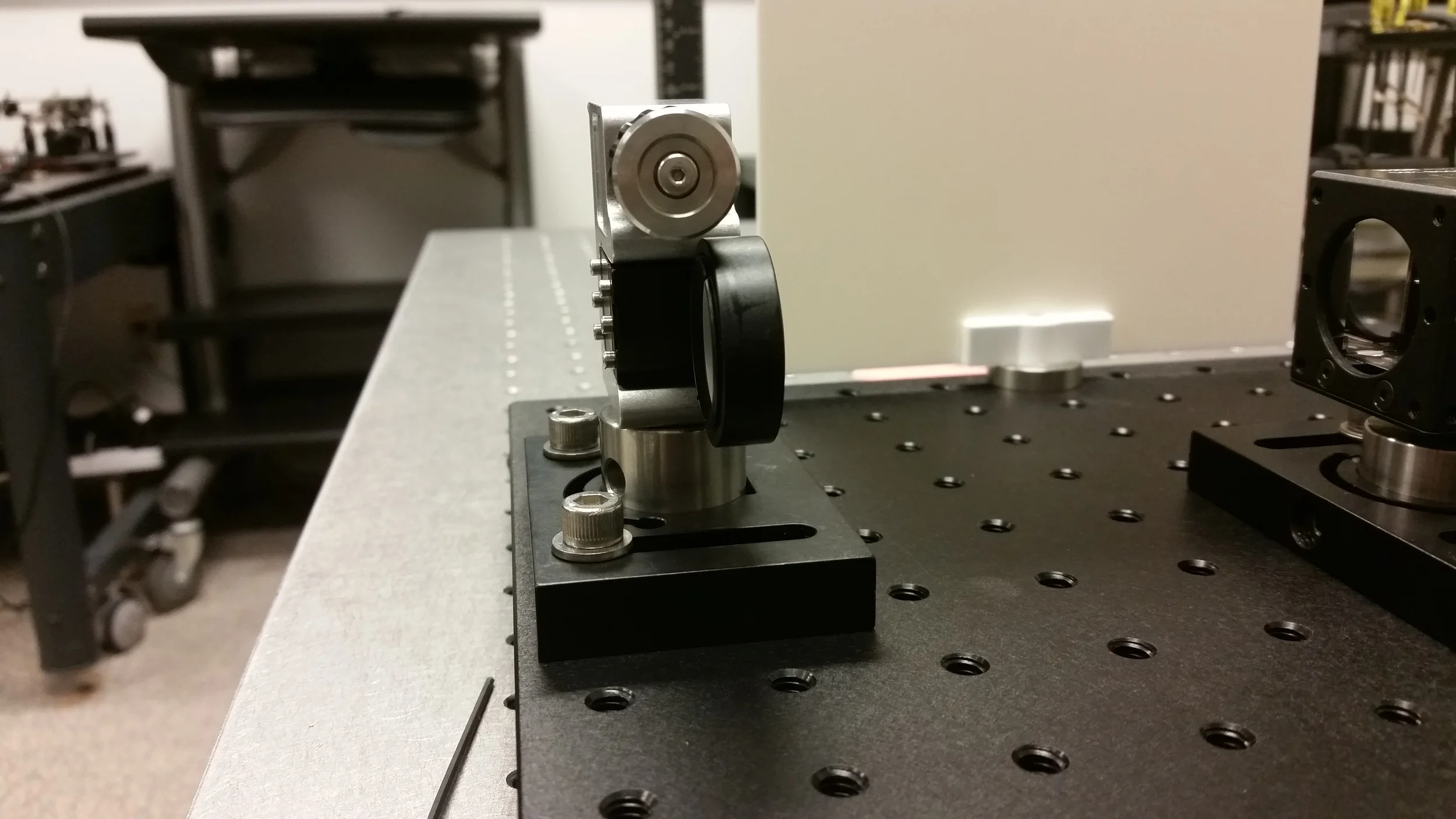

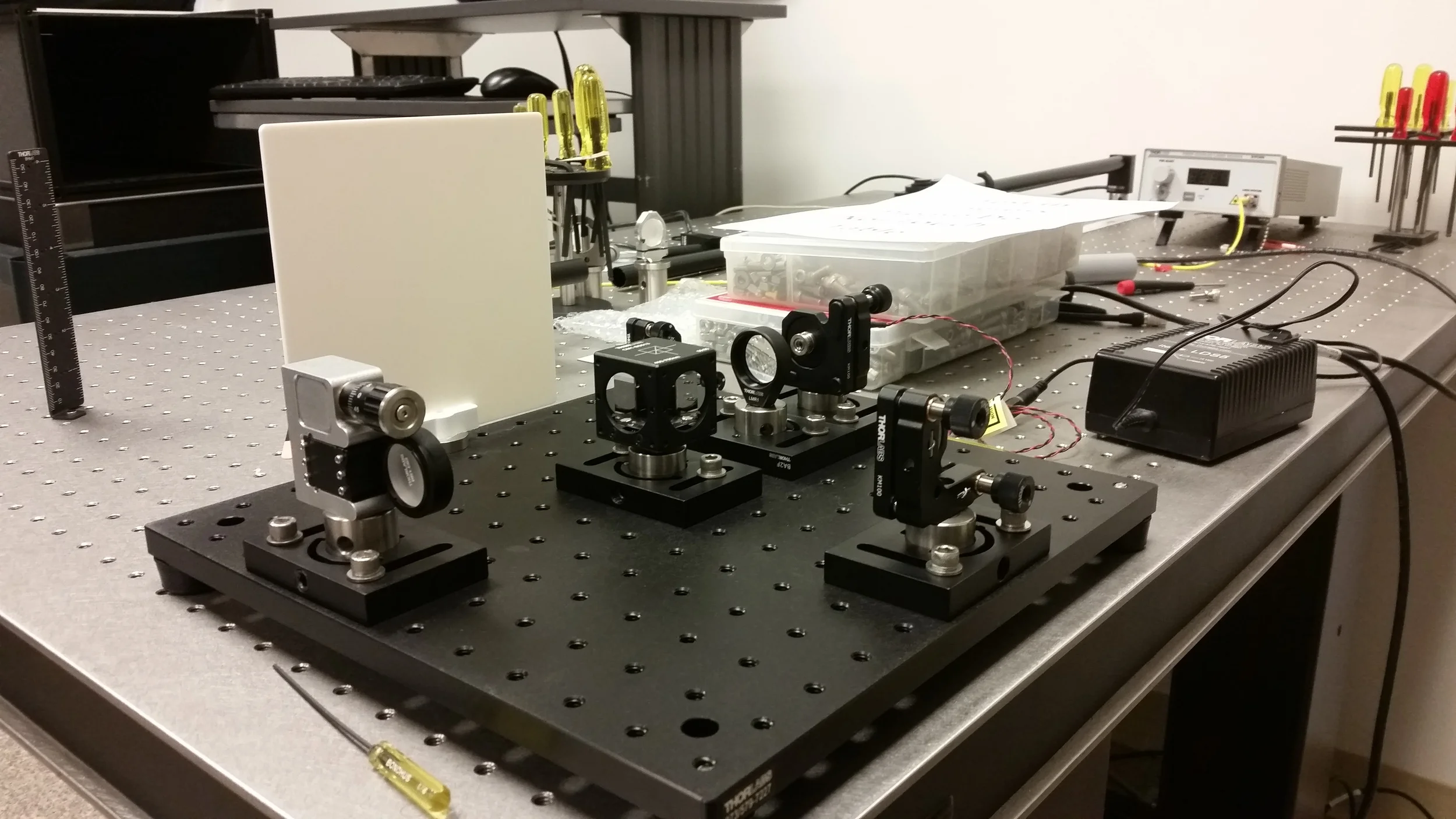

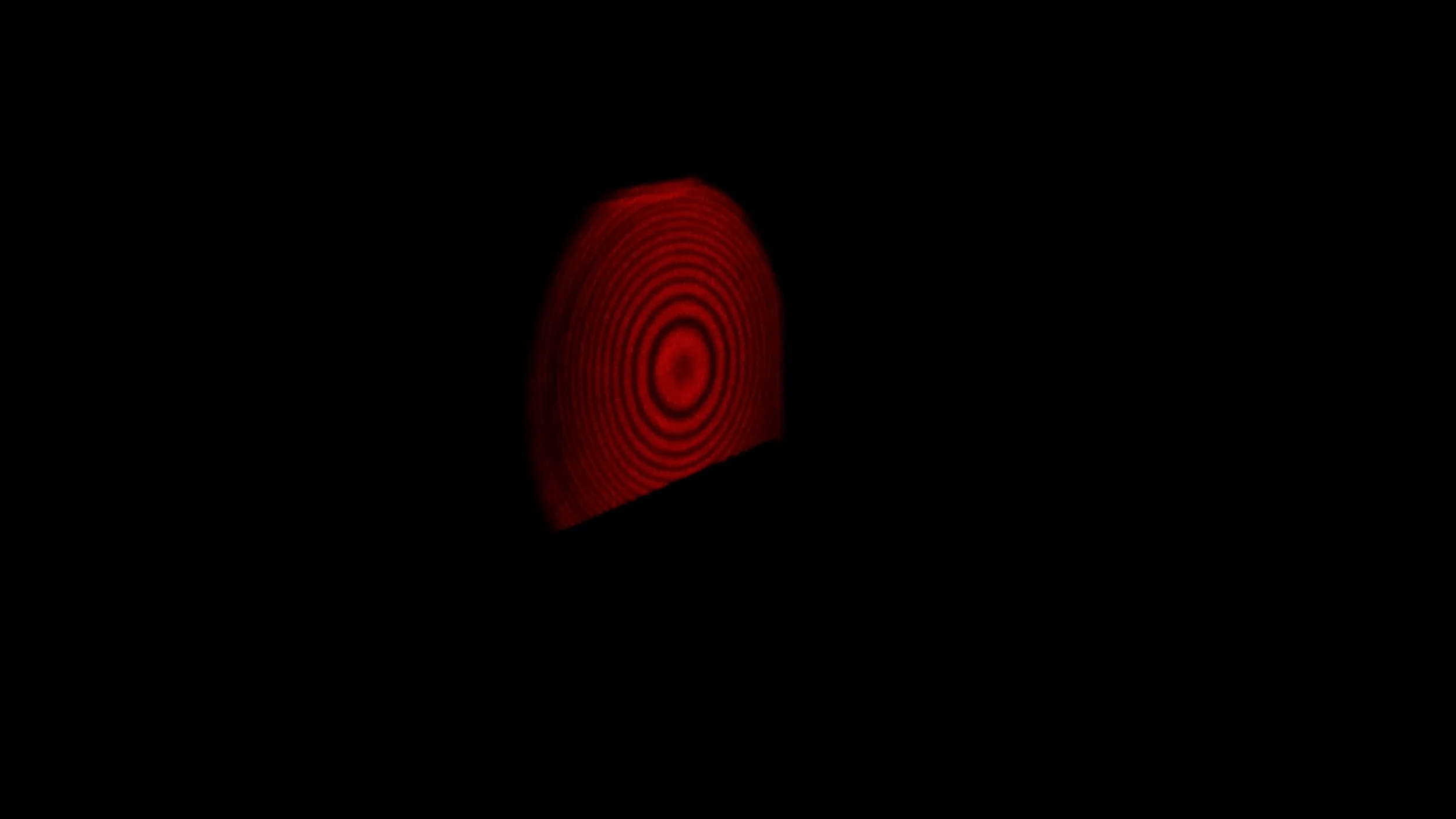

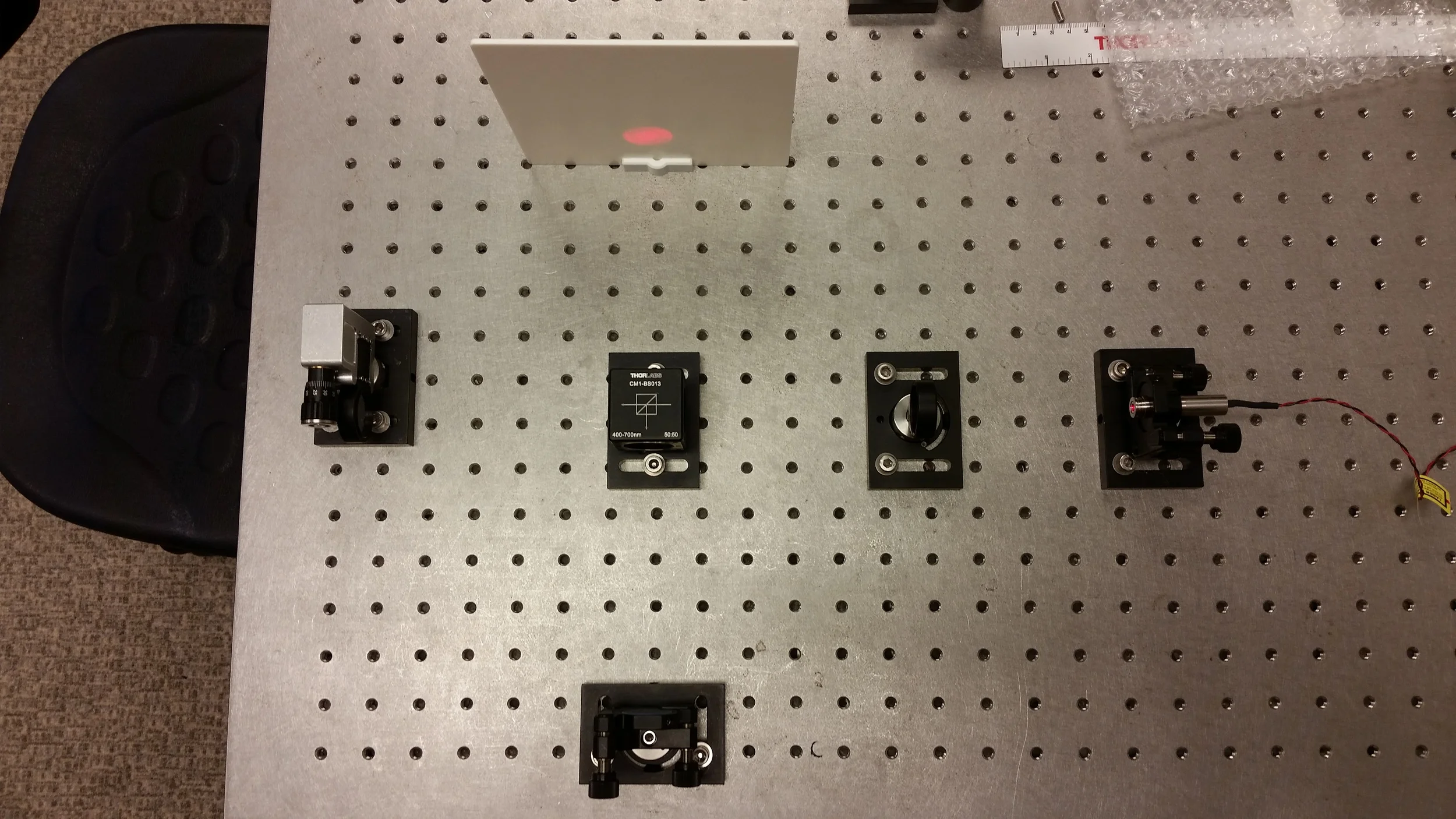

This is a Michelson interferometer, built for making precise linear measurements and characterizing the performance of optic mounts.



Zero-Aperture Iris


Zero-Aperture Iris

Zero-Aperture Iris


Zero-Aperture Iris

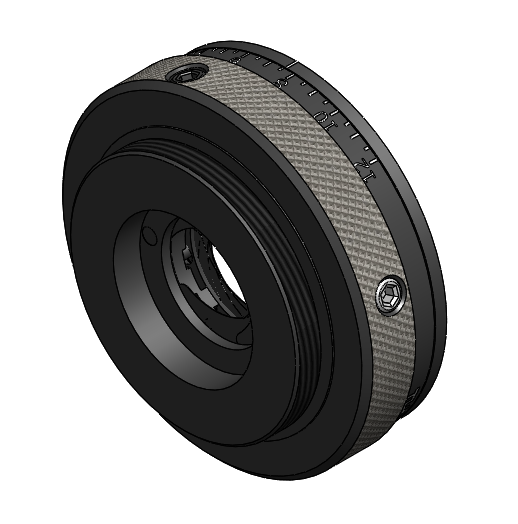

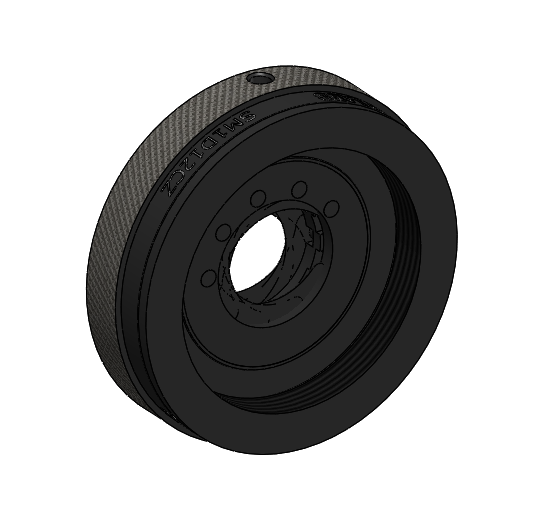

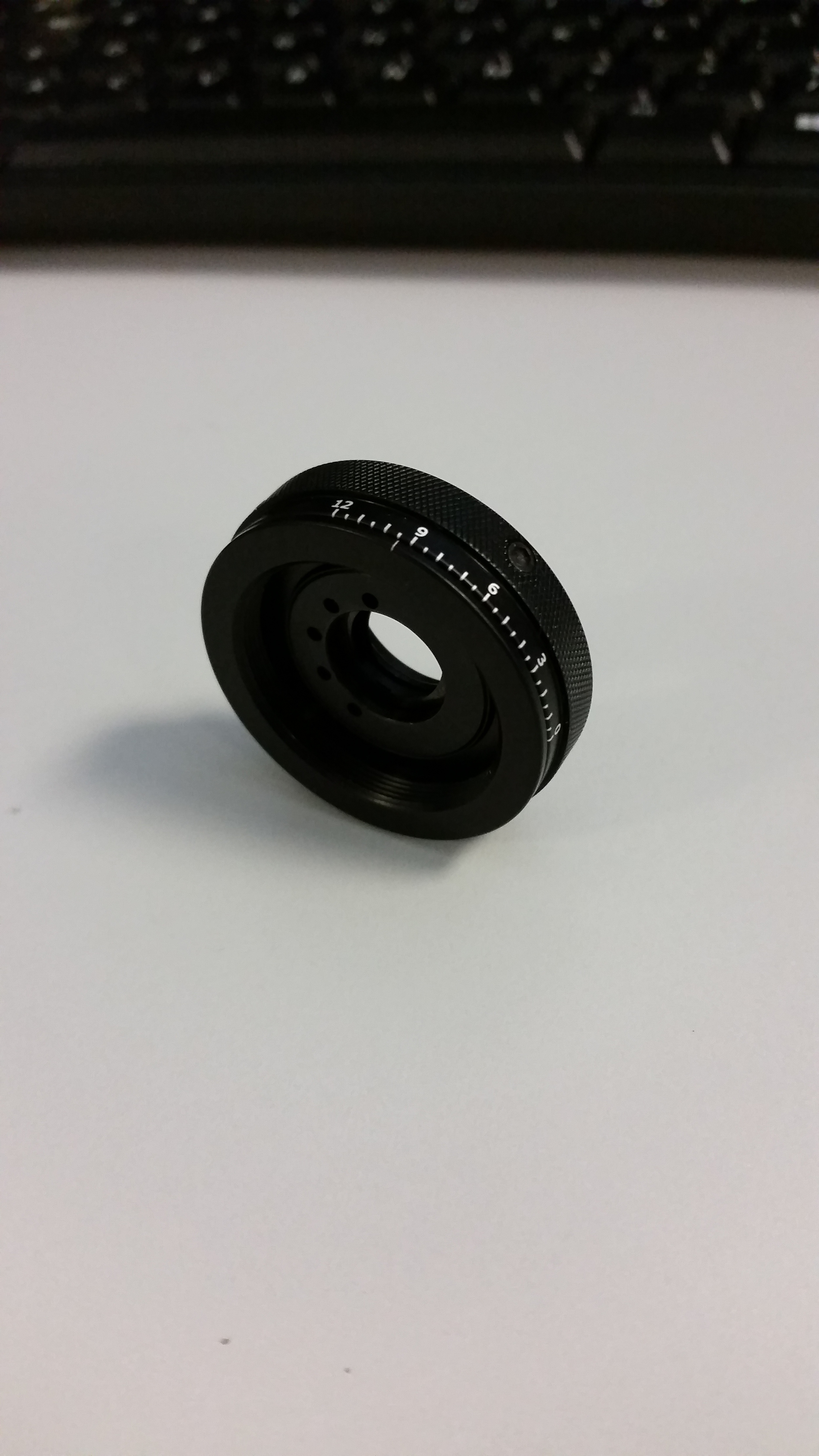

This is a ring-actuated, zero-aperture iris for use in optical systems. Laser engraved graduations denote the size of the current aperture, in millimeters. The iris is threaded on either end for incorporation into a closed optical system.


Culture Nuclei Full Frame.jpg

Microscope Objective Adapters


Microscope Objective Adapters

Microscope Objective Adapters


Microscope Objective Adapters

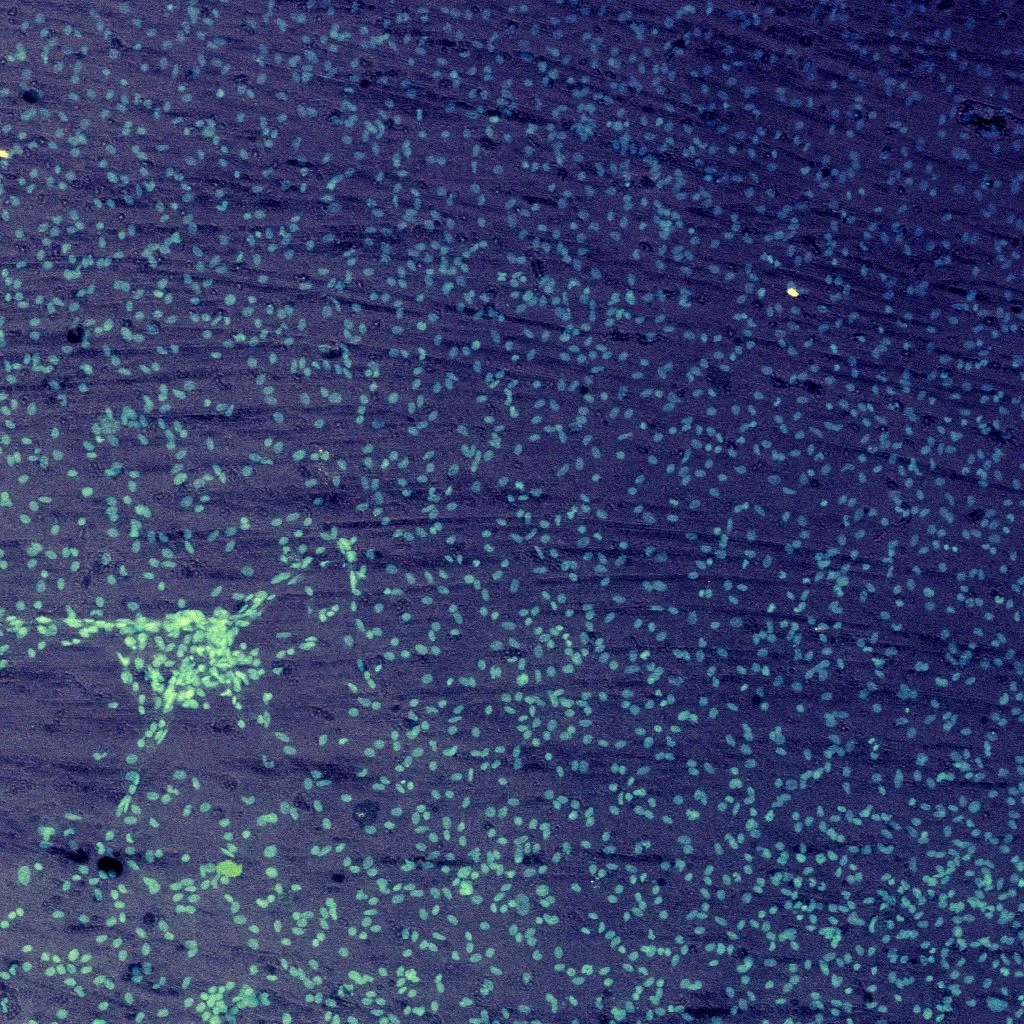

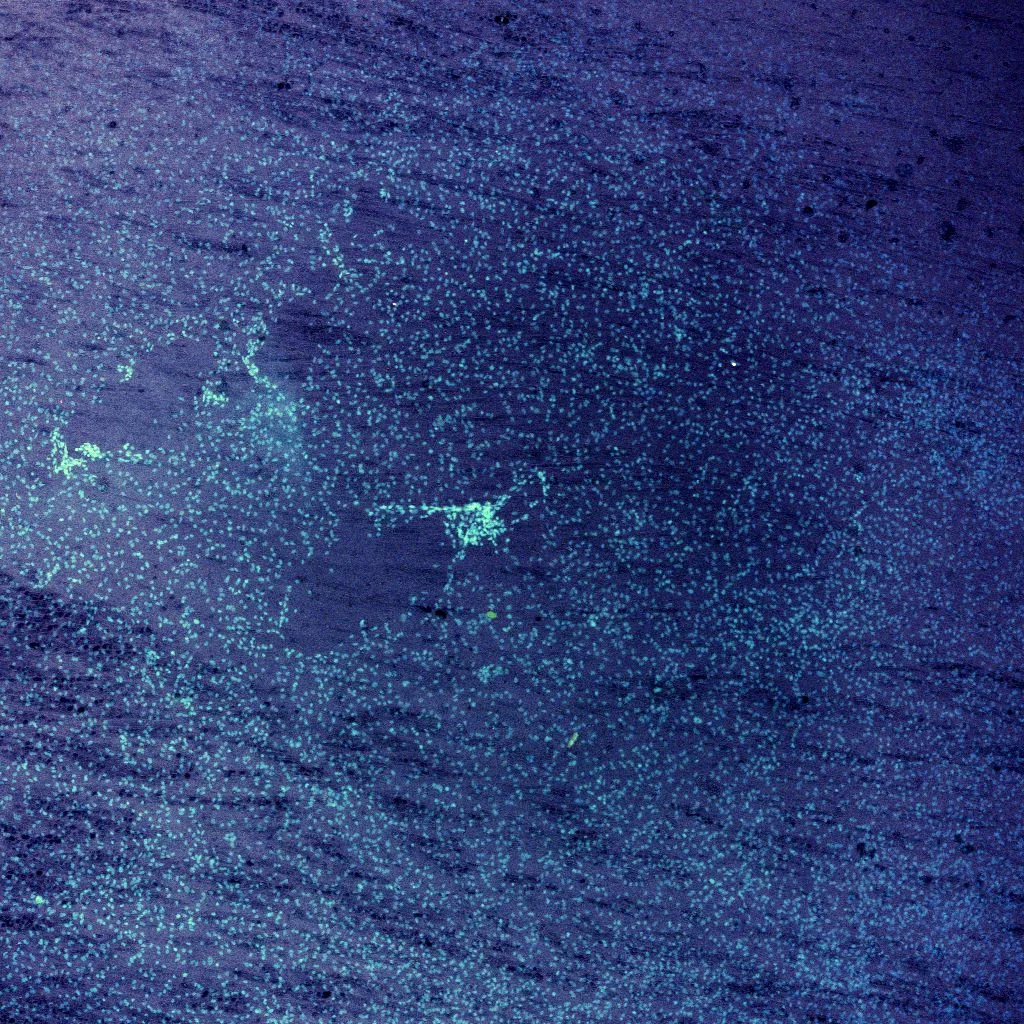

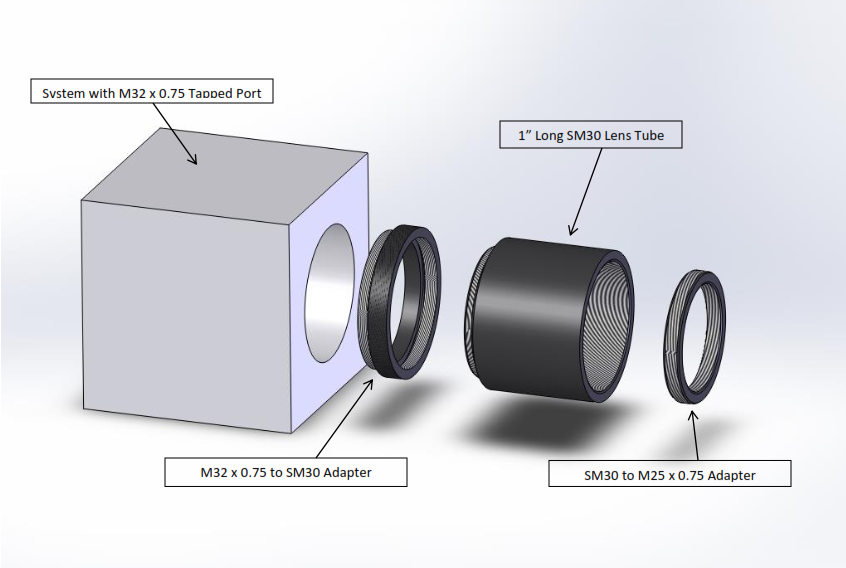

These microscope objective adapters were designed to allow the incorporation of a specific objective into an imaging system. This adaptation facilitated the imaging of the nuclei of neuronal cell cultures.
